New Product
- Place of Origin:CN;GUA
- Product name:GUANGDONG, CHINA
- brand name:senke
- model number:SK-8A
- Type:nont-contact
- Key word:AI Body Biometric Face Recognition Temperature
- Size:8 Inch
- Memory:2G
- Packing:carton
- Keywords:face recognition temperature
- Display:LED Display

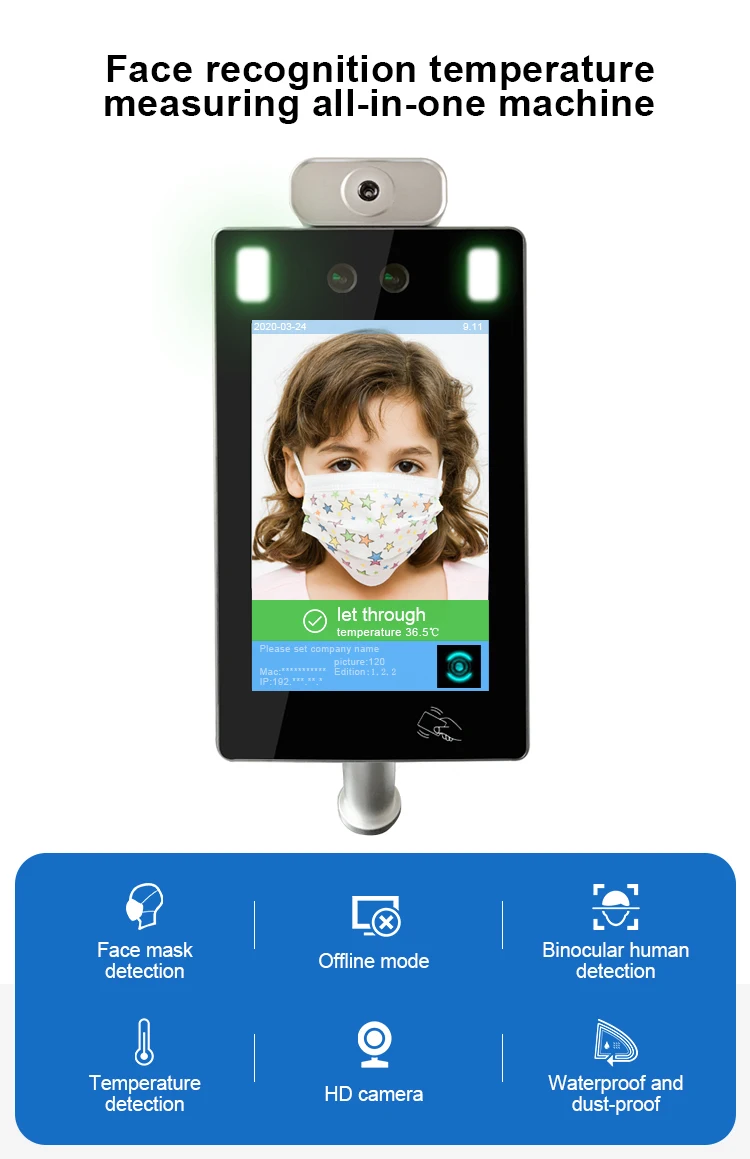

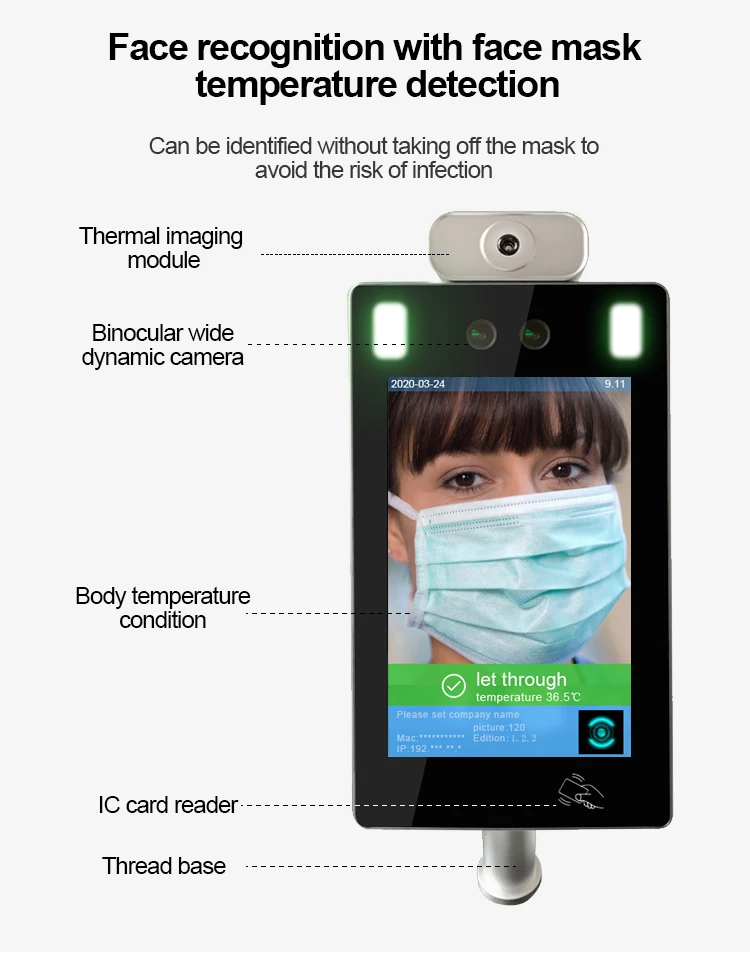

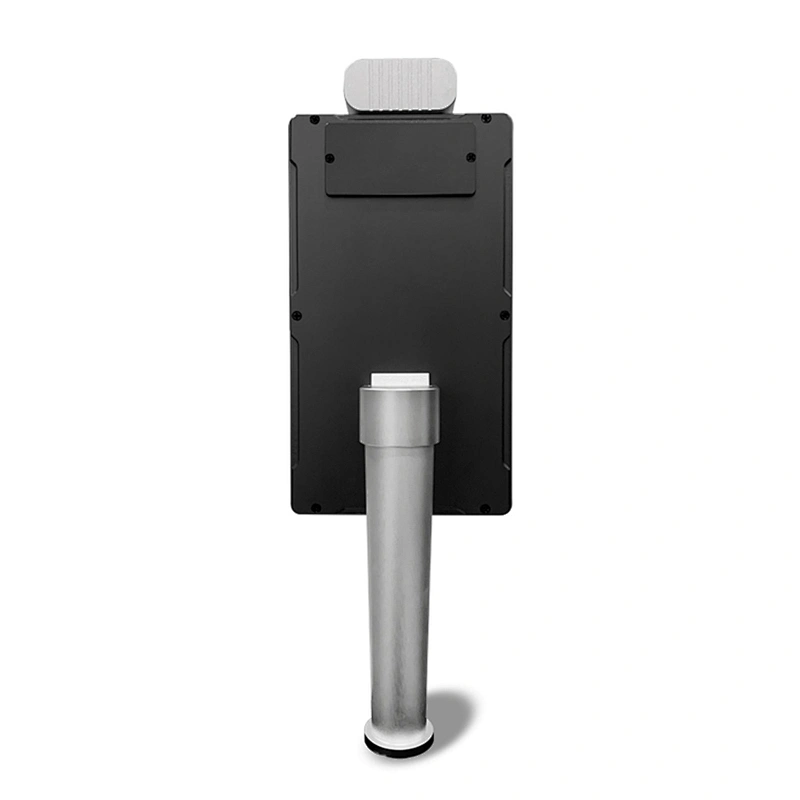

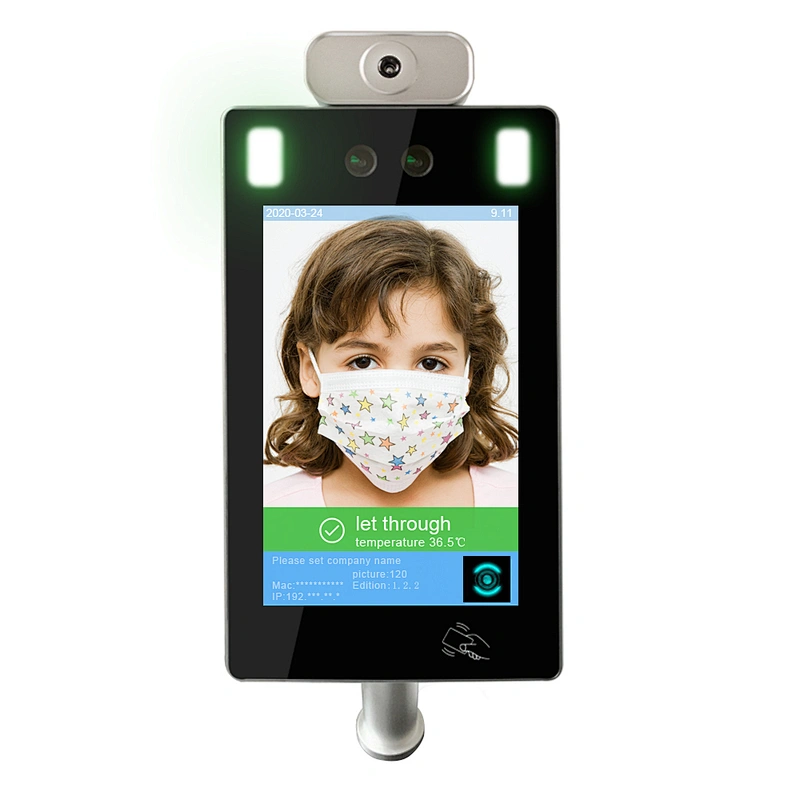

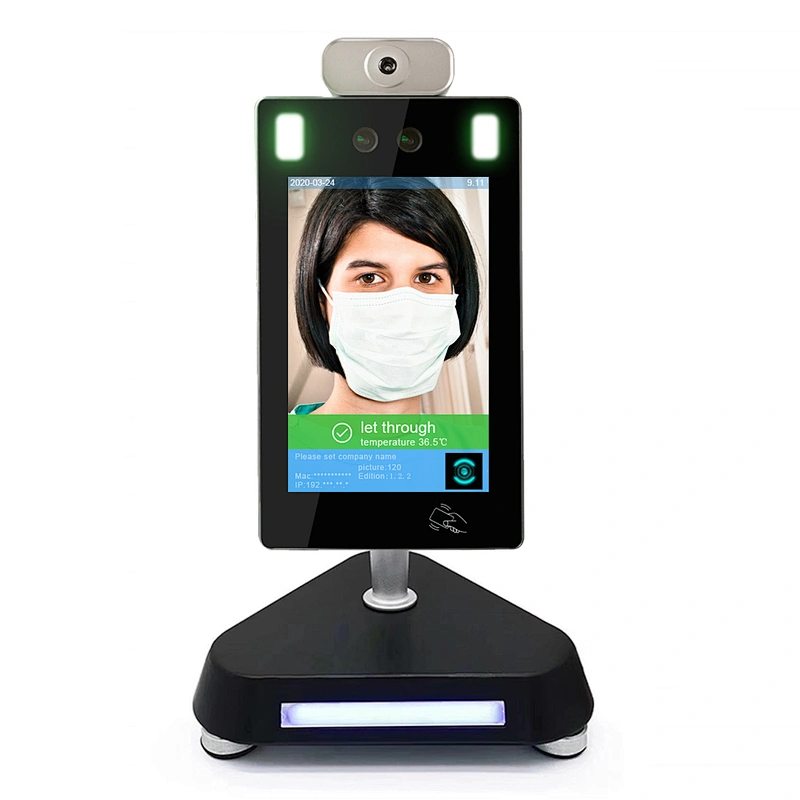

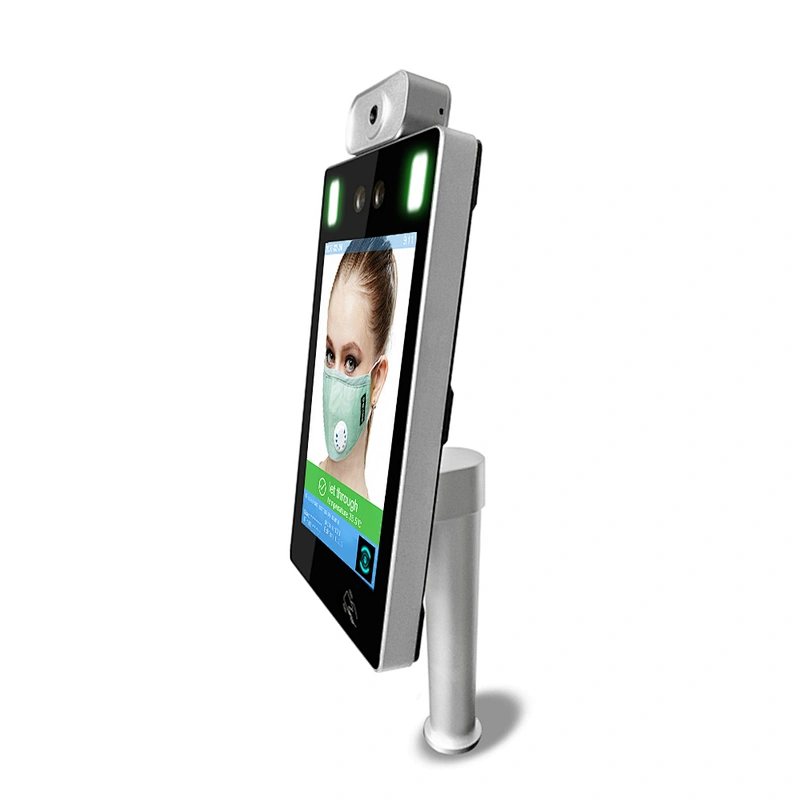

AI Body Biometric Face Recognition Temperature
Specification | |
Display size | 8 inch |
Display type | IPS LCD Capacitive 10 point touch screen |
Whole Size | 290*145*26 mm |
Processor | 32 bit quad-core ARM Chip RK3288 |
Memory | 2GB |
Flash | 8GB |

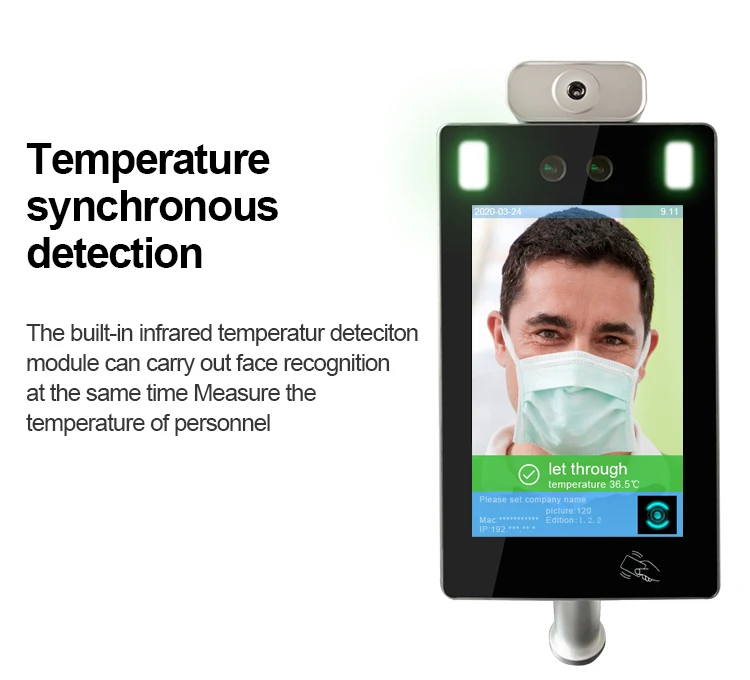

Measurement mode | Thermal imaging temperature measurement |
Measurement Distance | 0.5m~0.8m |
communication method | TTL |
Temperature measurement accuracy | ±0.3℃ |
Working Temperature | -20~65℃ |
Storage temperature | -40~65℃ |
Power supply | 3-5V |
Electronic current | 2ma |
Baud rate | 9600/115200 |
Default auto output frequency | 14Hz |
Wavelength range | 8~14µm |
Temperature output | Real-time parallel output |
Temperature correction | Manual and automatic calibration |

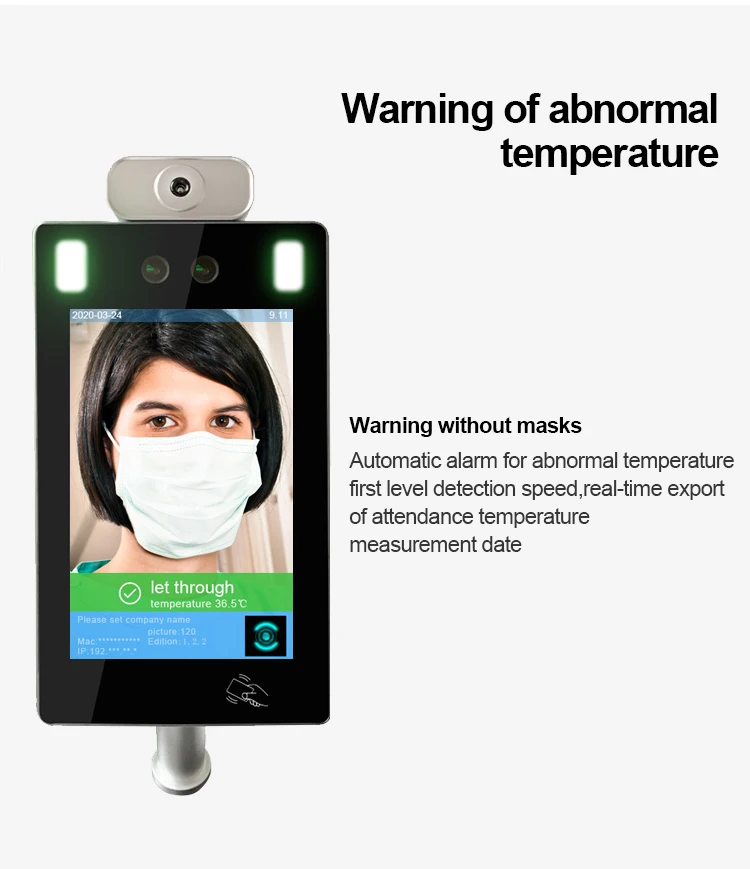

Alarm threshold | Adjustable |

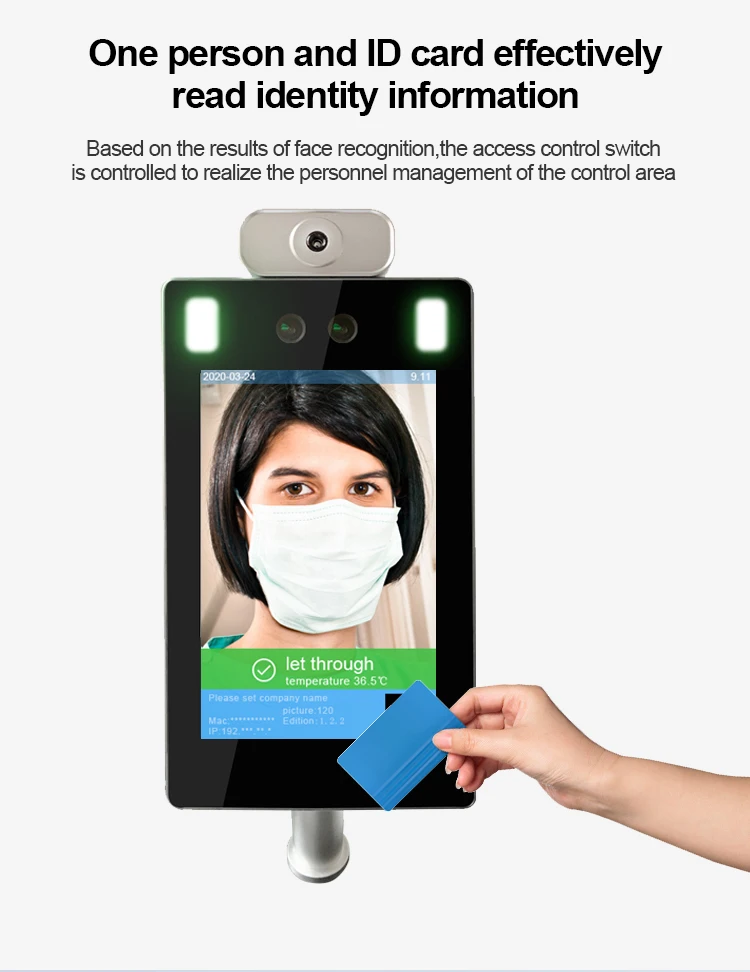

Wiegand interface | Support Wigan 26, Wigan 34 |
Other Interface | 232 TTL WIFI RJ45 |
Style | Symmetrical design for horizontal and vertical hanging |

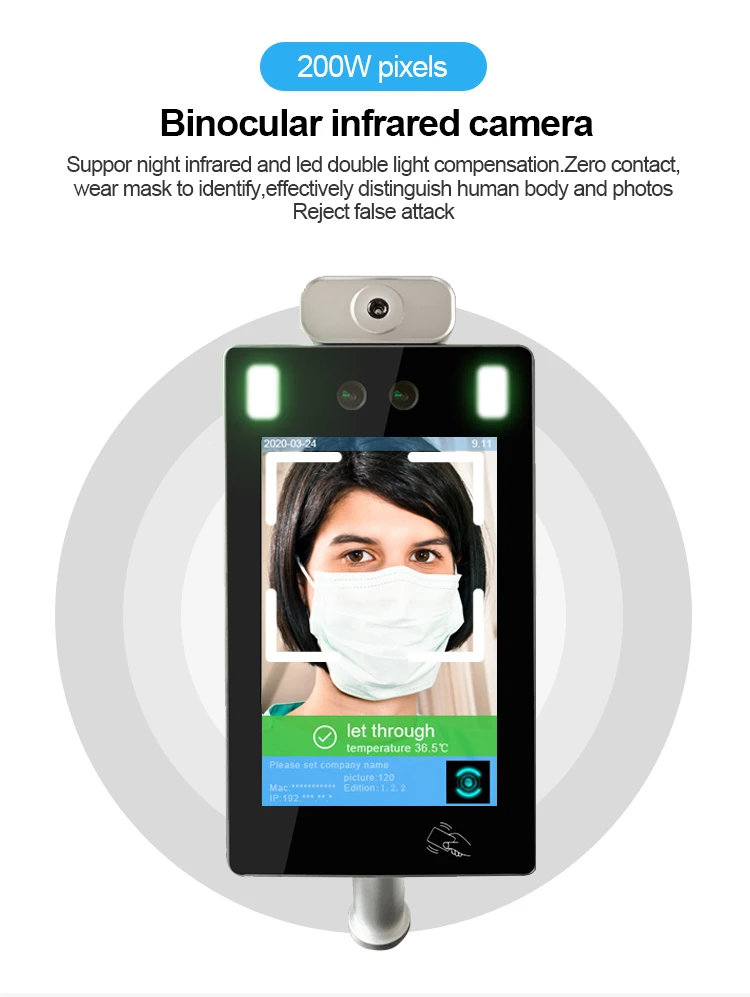

Camera | 200w:USB,Binocular camera, wide dynamic, anti-glare |
Aperture 2.8, focal length 1.6mm, field of view 130 °, TV distortion <-5%, photosensitive area size 1 / 5-inch | |
Pixels: According to customer requirements, ≥2 million pixels | |
Assembly angle: flat out | |
Image Sensor | 6mm focal length, F2.4 aperture |
Fill light | LED: white light, RGB camera fill light, a control interface in SDK |
NIR:850nm infrared LED Light, IR camera fill light source, control interface in SDK | |
Operating System | Android 7.1 |
Input power | 12V2A |
Backlight recognition illumination | <6000Lux |
Effective recognition distance | 0.5m to 4 m |
Working Environment | Indoor/Outdoor |
Working Temperature | -20℃~+55℃ |
Reading speed | 0.1s |
Why choose us?
1, We have about 10 years industrial experience and we've got quite a lot authority certificates,for example,CE,UL,FCC.
2,We are a manufacturer with OEM/ODM service, has high quality and good service.
3,We try our best to provide affordable and safe logistics.
4,We have professional testing team and have a strict testing measure.
5,Our sale team have a strong sense of responsibility and provide good after sale service.
1,Are you a factory?
We are a factory with OEM/ODM service.
2,When can I get the quotation?
We usually quote within 12 hours after we got your inquiry.
3,Can I have any discount ?
I'll surely try my best to help you get those by the best price and good service at the same time.
4,What kind of inspection you can provide?
We provide QA and QC inspection systems. We have strict inspection of incoming materials and finished product inspection system.
5,What's your MQO?
Our MQO is one is one piece.
6,Can your product test strangers?
Yes. Our product can capture picture and store up to 100000-500000 photos as long as anyone get throungh it.
7,Can I change the logo?
Yes,we provide customizations of logo, company name,installation and so on.
